Category: Iconic
Tags: led, marquee, graphic, iconic, neon, audio-reactive

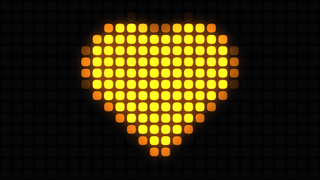

A frame-filling LED marquee: a bold pictographic icon (heart, arrow, EKG pulse, digit, plus, ring) rasterized into a coarse grid of glowing neon cells that morph, sweep, scroll, and pump to the music.
Parameters
Icon
| Parameter | Range | Default | Unit |
|---|
| Icon A | 0 – 5 | 0 | |
| Icon B | 0 – 5 | 1 | |
| Morph | 0 – 100 | 0 | % |
| Icon Size | 20 – 150 | 80 | % |
| Rotation | 0 – 360 | 0 | ° |
Matrix
| Parameter | Range | Default | Unit |
|---|
| Grid Density | 4 – 64 | 18 | |
| Cell Fill | 5 – 100 | 78 | % |
| Pill Shape | 0 – 100 | 60 | % |
Marquee
| Parameter | Range | Default | Unit |
|---|
| Scroll | 0 – 100 | 0 | % |
| Scan Position | 0 – 100 | 0 | % |
| Scan Width | 0 – 100 | 25 | % |
Dynamics
| Parameter | Range | Default | Unit |
|---|
| Threshold | -100 – 100 | 0 | % |
| Flicker | 0 – 100 | 0 | % |
Audio
| Parameter | Range | Default | Unit |
|---|
| Audio React | 0 – 100 | 35 | % |
LED Color
| Parameter | Range | Default | Unit |
|---|
| Hue | 0 – 360 | 28.8 | ° |
| Saturation | 0 – 100 | 95 | % |
| Brightness | 0 – 100 | 100 | % |
Background
| Parameter | Range | Default | Unit |
|---|
| Hue | 0 – 360 | 223.2 | ° |
| Saturation | 0 – 100 | 50 | % |
| Brightness | 0 – 100 | 2 | % |
| Opacity | 0 – 100 | 100 | % |
Glow
| Parameter | Range | Default | Unit |
|---|
| Glow | 0 – 100 | 45 | % |
| Ghost | 0 – 100 | 12 | % |
These parameters are available on all sources.
| Parameter | Range | Default | Unit |
|---|
| Position X | -100 – 100 | 0 | |
| Position Y | -100 – 100 | 0 | |
| Rotation | -180 – 180 | 0 | ° |
| Scale | 0 – 200 | 100 | % |
| Zoom | 0 – 200 | 100 | % |
